| Product： |
Self-Balancing Valve |
| Item No.： |
ZL47F |
|
| Calibre： |
DN15-400 |
| Nominal Pressure： |
1.6 Mpa |
| Description: ZL47F self-balancing valve, is a kind of use of the pressure of the medium itself to control itself, so as to maintain the flow through the alleged system flow balance valve, with flow indication, can be adjusted online, suitable for heating and air conditioning system and other non-corrosive media flow control. |
|
|
Specification: A one-time test adjustment before running allows system traffic to automatically be constant at a pre-set set value. The valve flow adjustment is accurate, simple to operate, balanced action, reliable performance, long service life.
|
Product Performance of Item No. ZL47F
ZL47F自力式流量平衡阀(带锁) 主要技术参数 |
| 公称压力(MPa) |
壳体试验压力(MPa) |
适用温度 |
适用介质 |
| 1.6 |
2.4 |
≤100℃ |
水、油等非腐蚀性液体 |

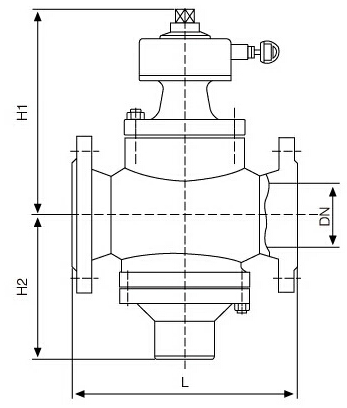

三、ZL47F自力式流量平衡阀(带锁) 主要连接尺寸
| 公称通径 (mm) |
尺寸(mm) |
| L |
H1 |
H2 |
| 15 |
110 |
122 |
70 |
| 20 |
110 |
122 |
70 |
| 25 |
115 |
137 |
74 |
| 32 |
160 |
182 |
91 |
| 40 |
200 |
191 |
147 |
| 50 |
215 |
197 |
147 |
| 65 |
230 |
205 |
154 |
| 80 |
275 |
259 |
181 |
| 100 |
290 |
268 |
211 |
| 125 |
315 |
334 |
227 |
| 150 |
350 |
357 |
260 |
| 200 |
430 |
407 |
303 |
| 250 |
520 |
452 |
367 |
| 300 |
635 |
486 |
430 |
| 350 |
670 |
555 |
495 |
|
|
|
|
|
|
