Gate Valve PZ73/573/673/973X/F/H/W Made in China
Product：

Knife-Shaped Gate Valve with Cover
Item No.： PZ73/573/673/973X/F/H/W
Calibre： DN50-600
Nominal Pressure： 0.6-1.6MPa
Description: The valve has the advantages of light switch, reliable seal, good elastic memory and long service life. Can be widely used in tap water, sewage, construction, petroleum, chemical, food, medicine, textile, electricity, ships, metallurgy, energy systems and other physical pipelines as a regulating and intercepting device. There are plate-type gate valve, knife-type mud gate valve, knife-type slag gate valve, single-clamp slag gate valve and manual single-clamp knife gate valve.

Specification:

Product Performance of Item No. PZ73/573/673/973X/F/H/W

【产品性能参数】

PZ73H、PZ73F、PZ73Y 型刀型闸阀（刀闸阀）主要性能参数
型号 PN 工作压力 / MPa 适用温度 / ℃ 适用介质
PZ73H-10C/16C 10、16 1.0、1.6 ≤ 100 纸浆、污水、煤浆、灰渣水泥混合物
PZ73F-10P/16P
PZ73Y-10P/16P

【产品零部件材料】

PZ73H、PZ73F、PZ73Y 型刀型闸阀（刀闸阀）零部件材料
型号 材料
阀体 阀杆 密封面 填料
PZ73H-10C/16C WCB 2Cr13 硬质合金、聚四氟乙烯 V型聚四氟乙烯、柔性石墨环
PZ73F-10P/16P ZG1Cr18Ni9Ti 1Cr18Ni9Ti
PZ73Y-10P/16P CF8 (304) 0Cr18Ni9 (304)

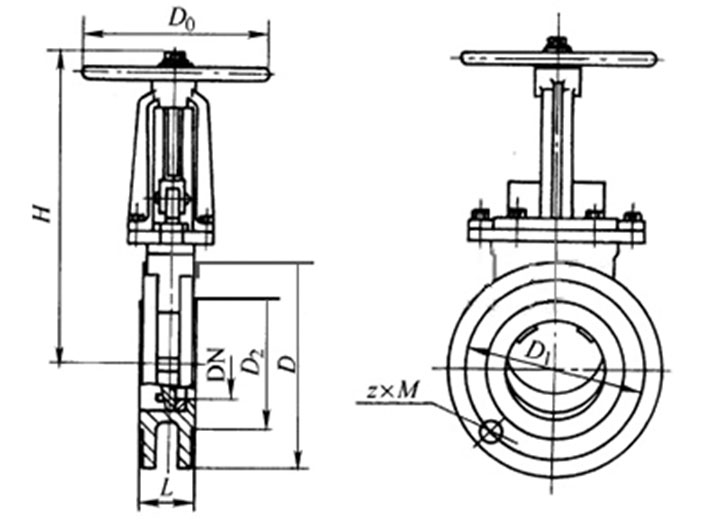

Gate Valve PZ73 Drawing

【产品外形及结构尺寸 (PN10)】

PZ73H、PZ73F、PZ73Y (PN10) 型刀型闸阀（刀闸阀）外形及结构尺寸 (mm)
DN L D D1 D2 H z×M D0
50 43 160 125 100 285 4×M16 180
65 46 180 145 120 298 4×M16 180
80 46 195 160 135 315 4×M16 220
100 52 215 180 155 365 8×M16 220
125 56 245 210 185 400 8×M16 230
150 56 280 240 210 475 8×M20 280
200 60 335 295 265 540 8×M20 360
250 68 390 350 320 630 12×M20 360
300 78 440 400 368 780 12×M20 400
350 78 500 460 428 885 16×M20 400
400 102 565 515 482 990 16×M22 400
450 114 615 565 532 1100 20×M22 560
500 127 670 620 585 1200 23×M22 530
600 154 780 725 685 1450 20×M27 600
800 190 1010 950 898 2×M 24×M30 680

【产品外形及结构尺寸 (PN16)】

PZ73H、PZ73F、PZ73Y (PN16) 型刀型闸阀（刀闸阀）外形及结构尺寸 (mm)
DN L D D1 D2 H z×M D0
50 43 160 125 99 285 4×M16 180
65 46 185 145 120 295 4×M16 180
80 46 200 160 135 315 8×M16 220
100 52 220 180 155 365 8×M16 220
125 56 250 210 185 400 8×M16 230
150 56 285 240 210 475 8×M20 280
200 60 340 295 265 540 12×M20 360
250 68 405 355 310 630 12×M22 360
300 78 460 410 375 780 12×M22 400
350 78 520 470 435 885 16×M22 400
400 102 580 525 485 990 16×M27 400
450 114 640 585 545 1100 20×M27 530
500 127 715 650 609 1200 20×M30 530
600 154 840 770 720 1450 20×M36 600
800 190 1025 950 898 2000 24×M36 680
