Electric Knife Gate Valve
|
| Item No.： |
Z973F、Z973H |
|
| Calibre： |
DN50~DN500 |
| Nominal Pressure： |
PN6~PN16 |
| Description: Z973F, Z973H electric knife-type gate valve (knife gate valve): electric drive, clip-on connection, open rod parallel rigid single gate, Z973F seat sealing surface material for fluorine plastic, Z973H seat sealing surface material for stainless steel, known as pressure PN6 to 16, valve body material for carbon steel gate valve. Equipped with a multi-turn electric device, the valve plate is moved up and down in a straight line, and the valve can be remotely controlled to open or close. Through diameter range: DN50 to DN500, the use of temperature ≤ 100 degrees C, widely used in drainage, heating, power stations, chemicals, food, paper, pharmaceutical, coal, mining and other projects. |
|
Product Parts Materials for Item No. Z973F,Z973H:
| Model No. |
Valve Body |
Gate |
Sealing Surface |
Stem |
Filler |
| Z973F-6C |
Carbon Steel |
Chromium Nickel Ttitanium Stainless Steel |
Fluoroplastics |
Chrome stainless steel |
asbestos |
| Z973H-6C |
Welding iron-based alloys |
| Z973F-10C |
Fluoroplastics |
| Z973H-10C |
Welding iron-based alloys |
| Z973F-16C |
Fluoroplastics |
| Z973H-16C |
Welding iron-based alloys |
|

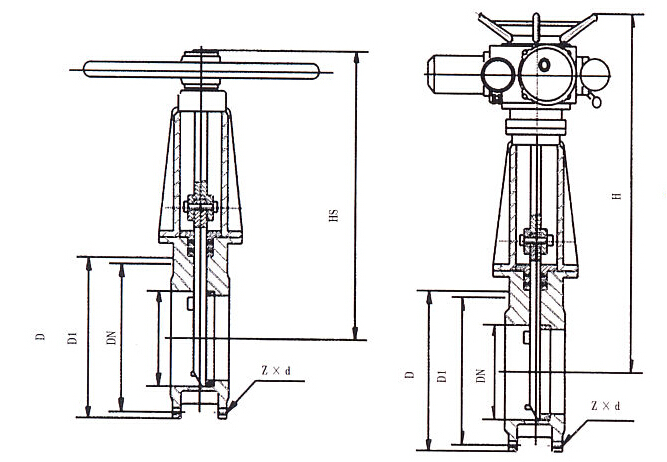

| Section Drawing of Electric Knife Gate Valve Z973F/H |
 |
Product Performance of Item No. Z973F,Z973H:
| Model No. |
PN |
Design Pressure
(Mpa) |
Medium |
Applicable Temperature |
| Z973F-6C |
6 |
0.6 |
Suitable to Slags |
≤100℃ |
| Z973H-6C |
| Z973F-10C |
10 |
1.0 |
| Z973H-10C |
| Z973F-16C |
16 |
1.6 |
| Z973H-16C |
|
Product Specification for Z973F,Z973H (PN6)
|
DN
|
L
|
D1
|
D2
|
z×ød
|
H
|
Electric Type
|
N.W. / kg
|
|
50
|
50
|
90
|
110
|
4×ø12
|
370
|
DZ10
|
52
|
|
65
|
50
|
110
|
130
|
4×ø12
|
460
|
DZ10
|
53
|
|
80
|
50
|
125
|
150
|
4×ø16
|
590
|
DZ10
|
55
|
|
100
|
50
|
145
|
170
|
4×ø16
|
780
|
DZ10
|
57
|
|
150
|
60
|
200
|
225
|
8×ø16
|
980
|
DZ10
|
71
|
|
200
|
60
|
255
|
280
|
8×ø16
|
1053
|
DZ15
|
81
|
|
250
|
70
|
310
|
335
|
12×ø16
|
1060
|
DZ20
|
100
|
|
300
|
80
|
362
|
395
|
12×ø20
|
1230
|
DZ20
|
123
|
|
350
|
90
|
412
|
445
|
12×ø20
|
1250
|
DZ30
|
148
|
|
400
|
100
|
462
|
498
|
16×ø20
|
1770
|
DZ30
|
158
|
|
450
|
120
|
518
|
550
|
16×ø20
|
1920
|
DZ45
|
225
|
|
500
|
130
|
568
|
600
|
16×ø20
|
2010
|
DZ45
|
240
|
|
Product Specification for Z973F,Z973H (PN10)
|
DN
|
L
|
D1
|
D2
|
z×ød
|
H
|
Electric Type
|
N.W. / kg
|
|
50
|
50
|
100
|
125
|
4×ø16
|
370
|
DZ10
|
54
|
|
65
|
50
|
120
|
145
|
4×ø16
|
460
|
DZ10
|
60
|
|
80
|
50
|
135
|
160
|
4×ø16
|
590
|
DZ10
|
62
|
|
100
|
50
|
155
|
180
|
8×ø16
|
780
|
DZ10
|
66
|
|
150
|
60
|
210
|
240
|
8×ø20
|
980
|
DZ15
|
84
|
|
200
|
60
|
265
|
295
|
8×ø20
|
1053
|
DZ20
|
106
|
|
250
|
70
|
320
|
350
|
12×ø20
|
1060
|
DZ20
|
120
|
|
300
|
80
|
368
|
400
|
12×ø20
|
1230
|
DZ30
|
220
|
|
350
|
90
|
428
|
460
|
16×ø20
|
1250
|
DZ30
|
230
|
|
400
|
100
|
482
|
515
|
16×ø22
|
1770
|
DZ45
|
300
|
|
Product Specification for Z973F,Z973H (PN16)
|
DN
|
L
|
D1
|
D2
|
z×ød
|
H
|
Electric Type
|
N.W. / kg
|
|
50
|
50
|
100
|
125
|
4×ø16
|
370
|
DZ10
|
65
|
|
65
|
50
|
120
|
145
|
4×ø16
|
460
|
DZ10
|
68
|
|
80
|
50
|
135
|
160
|
8×ø16
|
590
|
DZ10
|
74
|
|
100
|
50
|
155
|
180
|
8×ø16
|
780
|
DZ10
|
77
|
|
150
|
60
|
210
|
240
|
8×ø20
|
980
|
DZ15
|
96
|
|
200
|
60
|
265
|
295
|
12×ø20
|
1053
|
DZ20
|
114
|
|
250
|
70
|
320
|
355
|
12×ø22
|
1060
|
DZ20
|
135
|
|
300
|
80
|
375
|
410
|
12×ø22
|
1230
|
DZ30
|
230
|
|
|
|
