| Product： |
Fixed Cast Steel Ball Valve |
| Item No.： |
A150 |
|
| Calibre： |
DN50-800 |
| Nominal Pressure： |
1.6~15Mpa |
| Description: ANSI Class 150 ball valve sizes up to 40 inch.A class 150 ball valve can withstand a pressure rating up to 20 bar during operationat —20 to 100°F (—29 to 38°C), as listed in ASME B16.34. a Class 150 ball valve is rated to approximately 270 PSIG at ambient conditions, 180 PSIG at approximately 400°F, 150 PSIG at approximately 600°F, and 75 PSIG at approximately 800°F. In other words, when the pressure goes down, the temperature goes up. |
|
|
Specification:
• Split body
• Design Standards: API 6D/ISO 17292 / ASME B16.34 / API 608
• Flanges: ASME B16.5, RF
• Lengths/Face-to-face: ASME B16.10
• Leak test: EN 12266-1 Rate A / API 598
• Stem: Anti-static and proof Blow-out
|
| Product Performance of Item No. A150
Fixed Cast Steel Ball Valve |
 |
 |

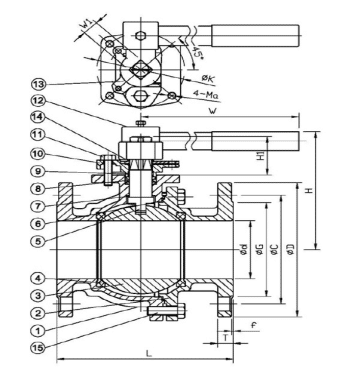

| Main Parts Material of A150
Fixed Cast Steel Ball Valve: |
| No. |
Part Name |
Material |
| 1 |
Body |
A216 WCB |
| 2 |
Bonnet |
A216 WCB |
| 3 |
Ball |
A182 F316 |
| 4 |
Seat |
RPTFE |
| 5 |
Stem |
A182 F316 |
| 6 |
Gasket |
304+Graphite |
| 7 |
Thrust Washer |
|
| 8 |
Packing |
Graphite |
| 9 |
Stem Packing |
Graphite |
| 10 |
Gland |
A216 WCB |
| 11 |
Gland Bolt |
A193 B7 |
| 12 |
Handle |
Carbon Steel |
| 13 |
Stopper |
S.S |
| 14 |
Snap Ring |
S.S |
| 15 |
Bolt |
A193 B7 |
|

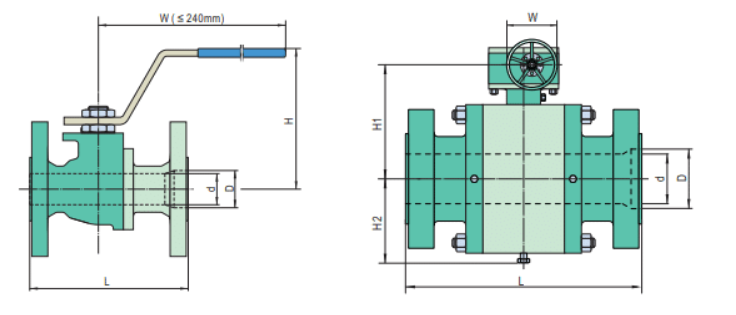

| Dimension of A150
Fixed Cast Steel Ball Valve |
| Size |
Face to face dimenion (L) |
Bore (d) (mm) |
Weight (Kg) |
| Inch |
DN |
RF (mm) |
BW(mm) |
RTJ(mm) |
| 2″ |
50 |
178 |
216 |
191 |
49 |
12 |
| 3″ |
80 |
203 |
283 |
216 |
74 |
24 |
| 4″ |
100 |
229 |
305 |
241 |
100 |
36 |
| 6″ |
150 |
394 |
457 |
406 |
150 |
94 |
| 8″ |
200 |
457 |
521 |
470 |
201 |
234 |
| 10″ |
250 |
533 |
559 |
546 |
252 |
406 |
| 12″ |
300 |
610 |
635 |
622 |
303 |
596 |
| 14″ |
350 |
686 |
762 |
699 |
334 |
829 |
| 16″ |
400 |
762 |
838 |
775 |
385 |
1092 |
| 18″ |
450 |
864 |
914 |
876 |
436 |
1577 |
| 20″ |
500 |
914 |
991 |
927 |
487 |
2001 |
| 24″ |
600 |
1067 |
1143 |
1080 |
589 |
3075 |
|
